PVDF CNC Machining Services
Custom PVDF (Polyvinylidene Fluoride) Parts Manufactured to Tight Tolerances for Highly Corrosive and High-Purity Environments.
STEP / STP / IGS / X_T accepted · NDA available
What Is PVDF?
Machining of PVDF
PVDF (Polyvinylidene Fluoride) is a semi-crystalline fluoropolymer known for its outstanding chemical resistance, high purity, excellent UV stability, and long-term durability.
Compared with many engineering plastics, PVDF performs exceptionally well in aggressive chemical environments and is widely used where contamination control is critical.
Please contact our sales and technical teams to learn about how we can provide high-quality machining PSU Engineering plastic services at a fair and competitive price.
Key Properties of PVDF Material
| Property | Typical Value |
| Continuous Service Temperature | 150°C |
| Chemical Resistance | Excellent |
| Tensile Strength | 45–55 MPa |
| Density | 1.78 g/cm³ |
| UV Resistance | Excellent |
| Water Absorption | Very Low |
| Electrical Insulation | Good |
| Purity | High |
Why Choose PVDF Precision Components?
Exceptional Chemical Resistance
PVDF resists a wide range of:
- Acids
- Alkalis
- Solvents
- Chlorinated chemicals
- Oxidizing agents
Ideal for aggressive process environments.
High Purity Performance
Low extractables and contamination levels make PVDF suitable for:
- Semiconductor applications
- Pharmaceutical equipment
- High-purity fluid systems
Excellent UV Resistance
Unlike many plastics, PVDF maintains its performance when exposed to sunlight and outdoor environments.
Suitable for:
- Environmental monitoring systems
- Outdoor processing systems
- Water treatment equipment
Electrical Insulation Properties
PVDF offers a balance of:
- Strength
- Toughness
- Wear resistance
- Dimensional stability
PVDF Machining Capabilities
Welcome to PlasticPartsCustom, your trusted partner for high-performance PVDF machining capabilities. Our state-of-the-art CNC machines and experienced team of engineers and technicians enable us to produce high-precision, complex parts with tight tolerances and exceptional surface finishes, using PVDF, a high-performance engineering thermoplastic.
CNC Milling
Our multi-axis machining centers produce complex PEI components with tight tolerances and excellent repeatability.
CNC Turning
We manufacture precision rotational PEI components including:Bushings, Sleeves, Spacers, Insulators, Connector Components

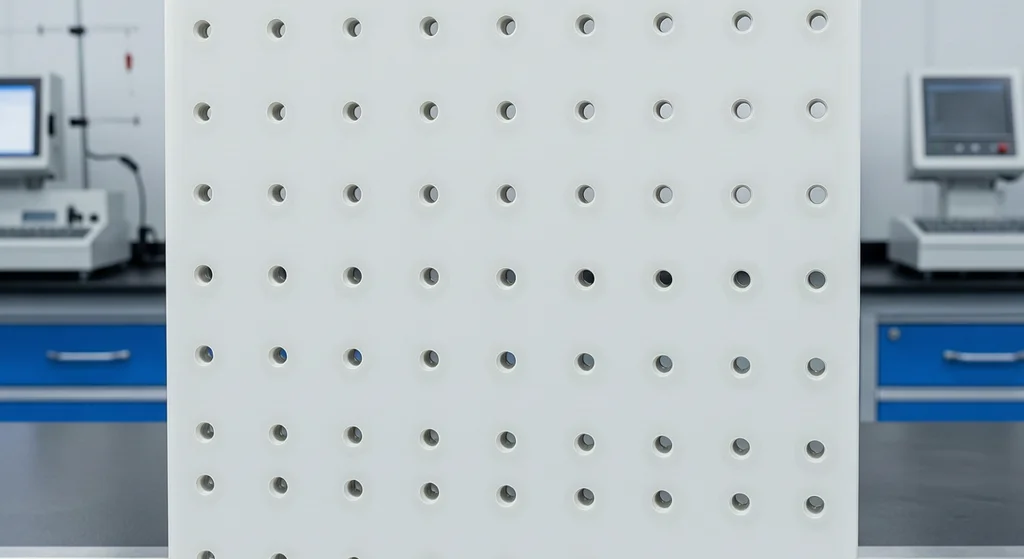

Precision Hole Machining
For applications requiring accurate alignment and assembly:Reamed Holes
Threaded Features, Precision Bores, Tight Positional Tolerances
PVDF Grades We Machine
Natural PVDF
The most commonly used grade.
Applications:
- Water treatment componentsApplications:
- Chemical equipment
- Fluid handling systems
High-Purity PVDF
Designed for contamination-sensitive environments.
Applications:
- Semiconductor equipment
- Pharmaceutical systems
- Analytical instruments
FDA-Compliant PVDF
Suitable for food and pharmaceutical processing.
Applications:
- Food equipment
- Pharmaceutical production
- Fluid transfer systems
UV-Stabilized PVDF
Enhanced long-term outdoor durability.
Applications:
- Environmental systems
- Outdoor processing equipment
- Water treatment installations
Available Material Forms
- PVDF Rod
- PVDF Sheet
- PVDF Tube
- Custom-Cut PVDF Blanks
PVDF Parts We Manufacture
Our PSU machining services support a wide range of custom applications.
Semiconductor Components
- Chemical delivery system parts
- Wafer processing fixtures
- High-purity manifolds
- Insulating components
Chemical Processing Components
- Valve bodies
- Pump parts
- Chemical-resistant housings
- Fluid transfer assemblies
Water Treatment Components
- Filtration components
- Flow control systems
- Chemical dosing equipment
Pharmaceutical Equipment Components
- Fluid handling parts
- Sterile process components
- Inspection assemblies
Laboratory Equipment Components
- Flow cells
- Analytical instrument parts
- Chemical containment systems
Common PVDF Machining Challenges We Solve
Our PVDF machining services support a wide range of custom applications.
Maintaining Dimensional Stability
Proper machining parameters help prevent distortion.
Surface Finish Optimization
Optimized tooling ensures smooth functional surfaces.
High-Purity Manufacturing Requirements
Dedicated handling procedures minimize contamination risks.
Complex Fluid Path Machining
Experience machining intricate manifolds and flow channels.
Quality Assurance
Every PVDF component is manufactured under our ISO 9001:2015 quality management system.
Inspection equipment includes:
Mitutoyo CMM
Digital Height Gauges
Micrometers
Calipers
Optical Measurement Equipment
Available documentation:
Material Certificates Certificate of Conformance (COC) First Article Inspection (FAI) Dimensional Inspection Reports
Why Engineers Choose PlasticPartsCustom
| Tight Tolerance Expertise Achievable tolerances up to ±0.01mm. |
| No MOQ Requirements From a single prototype to low-volume production runs. |
| Fast Turnaround Typical prototype lead times from 5–7 working days. |
| Material Expertise Extensive experience machining PEI, PEEK, POM, PTFE, PPS, and other engineering plastics. |
| Reliable Quality Consistent production supported by ISO 9001:2015 procedures and in-process quality control. |
Industries We Serve
- Semiconductor Equipment
- Medical Devices
- Industrial Automation
- Aerospace
- Electronics
- Scientific Instruments
- Energy Systems
PVDF vs PTFE: Which Fluoropolymer Should You Choose for Your Project?
PVDF and PTFE (Teflon) are both high-performance fluoropolymers with excellent chemical resistance, but they differ in mechanical strength, purity, and processing characteristics.
| Property | PVDF | PTFE (Teflon) |
|---|---|---|
| Max Service Temperature | 150°C | 260°C (500°F) |
| Tensile Strength | 45-55 MPa | 25-30 MPa |
| Hardness | Shore D 75-80 | Shore D 50-65 |
| Chemical Resistance | Excellent | Excellent (inert) |
| Purity | High (low extractables) | Excellent |
| UV Resistance | Excellent | Good |
| Friction Coefficient | Low | Extremely Low (0.05-0.10) |
| Wear Resistance | Good | Moderate |
| Machinability | Good | Moderate (soft, prone to deformation) |
| Relative Cost | $$$ | $$$ |
| Best For | Chemical processing, semiconductor wet process, water treatment, high-purity fluid handling | Seals, gaskets, chemical-resistant liners, electrical insulation, non-stick applications |
Choose PVDF if you need higher mechanical strength, better wear resistance, and excellent purity for semiconductor and chemical processing applications up to 150°C. Choose PTFE if your application requires extreme temperature resistance (up to 260°C), the lowest possible friction coefficient, or complete chemical inertness.
Not sure which material fits your project? Send us your drawing for a free material recommendation.
Related Materials
Explore other engineering plastics we machine:
| Material | Key Properties | Best For |
|---|---|---|
| PTFE (Teflon) | Higher temp 260°C, extreme chemical resistance | Seals, gaskets, chemical liners |
| PCTFE | Low gas permeability, cryogenic | Cryogenic seals, LNG, vacuum |
| PVC | Cost-effective, chemical resistant | Chemical processing, electrical, construction |
Frequently Asked Questions

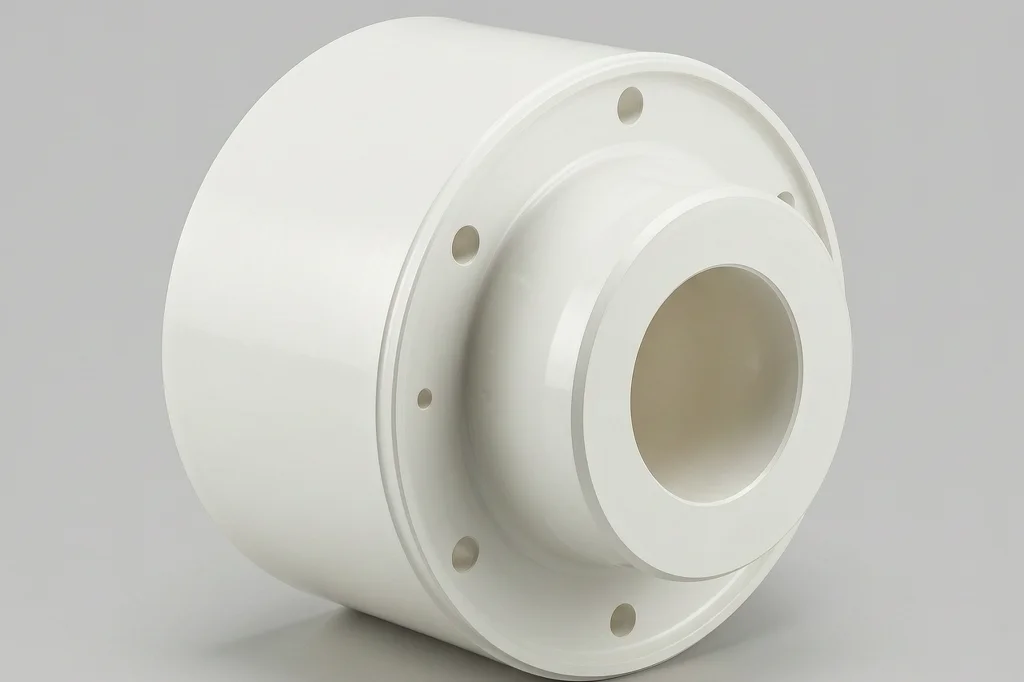

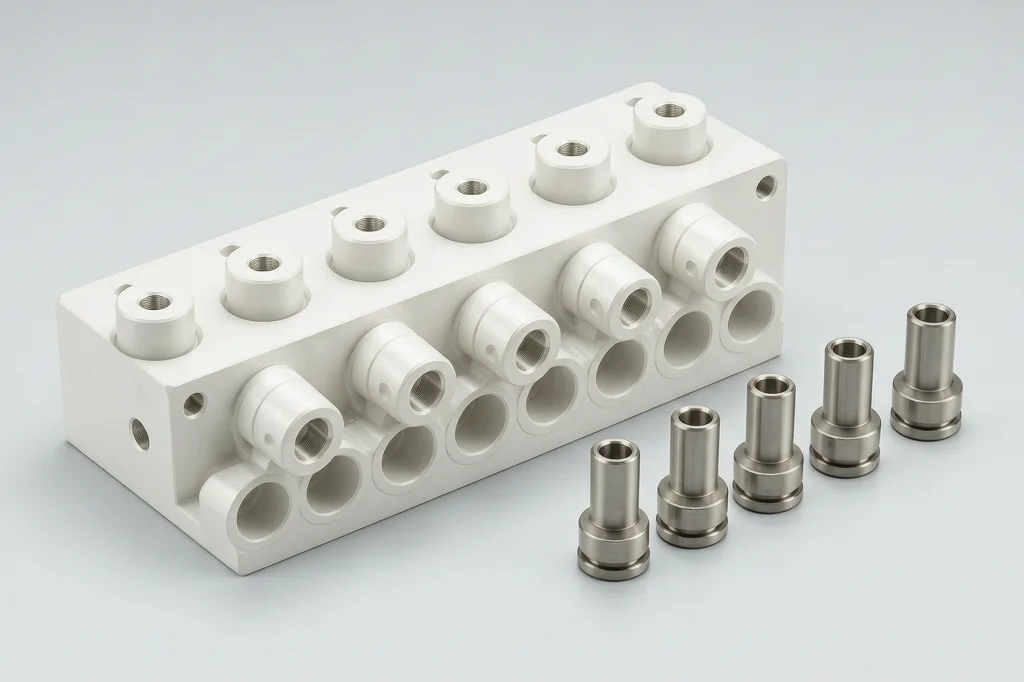

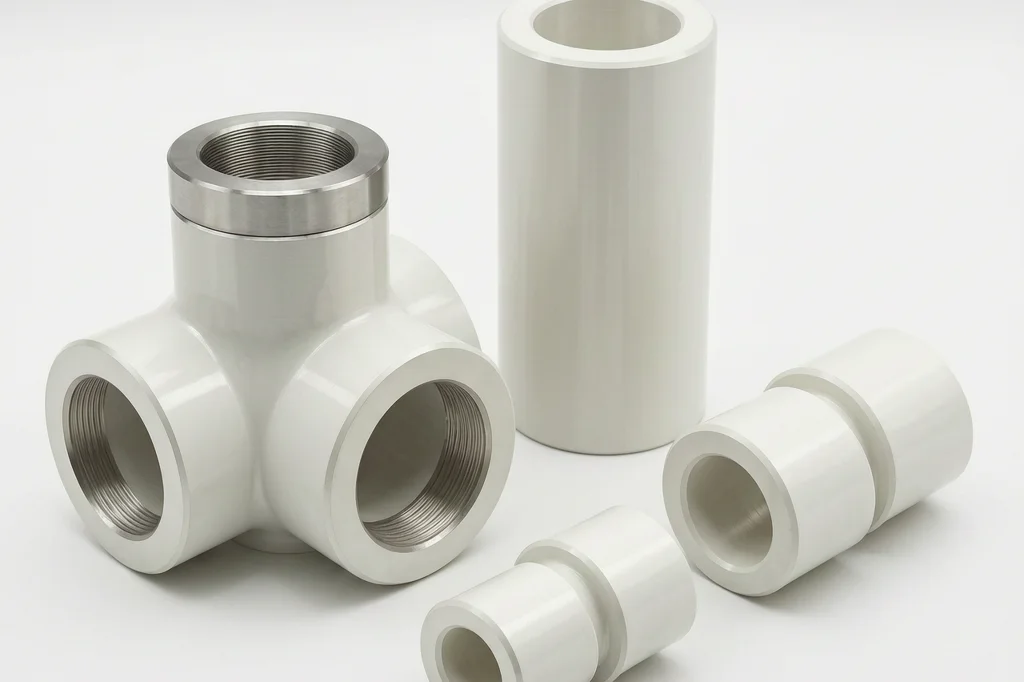

Gallery of CNC Machined PVDF Parts
CNC Machining Plastics PEI Application in Petrochemical Industry
PEI is one of the lightest and toughest polymers, and it is very stable even after many times high temperature, rinse by acid or Alkali, Machining CNC PEI parts are well used in the Petrochemical…
PEI Plastics Lathe Milling CNC Machining Service
PEI is a high-performance plastic. In recent years, in the electrical and electronic industries, PEI precision-machined parts have been used to replace metal to make optical fibre connectors to…
Customized PEI CNC Machining Service
The material is a high-end engineering plastic PEI (ULTEM), also known as polyetherimide. It is an amorphous high-performance polymer. This material has good mechanical properties, excellent…
Request a Quote for PVDF Machining Parts
Whether you need a single prototype or a low-volume production run, our engineering team can help evaluate your design and provide a competitive quotation.
Simply Send Us:
- 2D Drawings (PDF)
- 3D Files (STEP, STP, IGES, X_T)
- Quantity Requirements
- Material Specifications
What You Will Receive
- DFM Feedback
- ✓ Competitive Pricing
- ✓ Lead Time Confirmation
- ✓ Inspection Plan
- ✓ Engineering Support
Advantages of PVDF CNC Machining
High Temperature Resistance
PVDF can operate at temperatures up to 250°C (482°F) without losing its mechanical properties.
Chemical Resistance
PVDF is resistant to a wide range of chemicals, making it suitable for use in harsh environments.
Mechanical Strength
It has high tensile strength, stiffness, and impact resistance, which makes it ideal for demanding applications
Dimensional Stability
PVDF maintains its shape and size under mechanical stress and thermal conditions.
Biocompatibility
PVDF is biocompatible, making it suitable for medical implants and other healthcare applications.
Considerations for CNC Machining PVDF
Tool Selection
Use high-quality, sharp carbide or diamond-coated tools to achieve precise cuts and extend tool life.
Feed Rate and Speed
Optimizing the feed rate and spindle speed is crucial to avoid overheating and potential material deformation.
Coolant Usage
Proper coolant application can help dissipate heat, prevent material melting, and improve surface finish.
Chip Removal
Effective chip removal is essential to avoid recutting chips, which can affect surface quality and tool life.
Surface Finish
PEEK can achieve a good surface finish with proper machining parameters, but post-machining processes like polishing may be required for critical applications.
